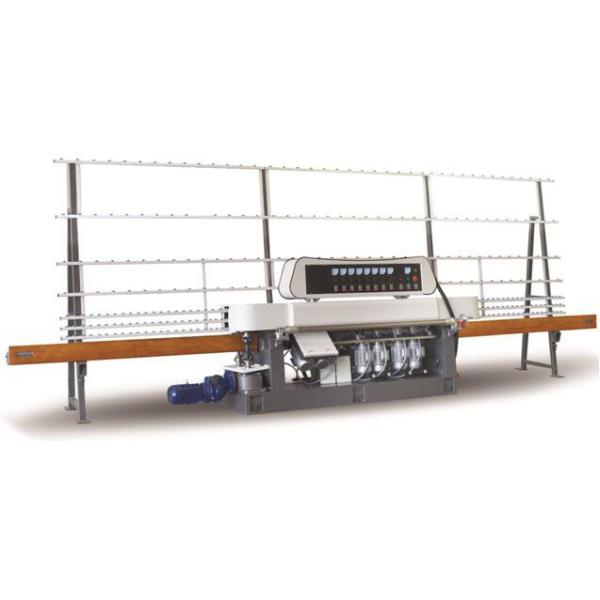

WZ8325 Glass Straight line Edging Machine(Control by handle)

I. Machine Description
WZ8325 glass straight Line Edging Machine is designed for grinding straight line flat edging and 45°arris of different sizes and thickness. Rough grinding, fine grinding, polishing and angle-making can be completed in one time. Processing speed can be widely adjusted by its stepless regulator. WZ8325 adopts 4 motors to process the flat edge, 2 motors process front arris and another 2 process rear one. It is controlled by handle. Input and output conveyor adopt timing belt which can improve precision. The processed glass surfaceis very bright and smooth, approaching the original glass surface.

II. Technical specifications:
1. Min. glass size: 80mm×80mm
2. Glass thickness: 3mm-25mm
3. Transmission speed: 0.5m/min-7m/min
4. Power: 18KW
5. Height of working table: 750mm
6. Weight: 3000kg
7. Packing size: 4000mm×1200mm×1700mm
8. Land occupation: 7000mm×1000mm×2500mm
