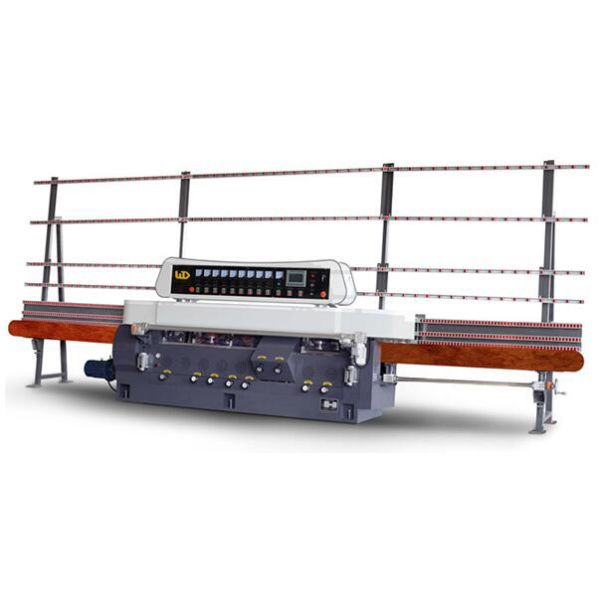

WZ9325 glass straight Line Edging Machine is designed for grinding straight line flat edging and 45°arris of different sizes And thickness. Rough grinding ,fine grinding, polishing and angle-making can be completed inone time. Processing speed can be widely adjusted by its stepless regulator. WZ9325 adopt 5 motors to process the flat edge, 2 motors to process front arris and another 2 process rear one. Input and output conveyor adopt chaining belt or timing belt which can improve the transmission precision. Wool felt wheel is used for polishing with cerium oxide at the No.9 motor (which use low speed motor and has a separated water tank). The processed glass surface is very bright and smooth, approaching to the original glass surface.

Technical specifications:
1. MIN.GLASS SIZE: 80mm×80mm
2. GLASS THICKNESS: 3mm-25mm
3. TRANSMISSINON SPEED: 0.5-7m/min
4. POWER: 19KW
5. HEIGHT OF THE WORKTABLES: 750mm
6. WEIGHT: 3200kg
7. PACKAGE SIZE: 4000mm×1200mm×1700mm
8. LAND OCCUPATION: 7000mm×1000mm×2500mm
