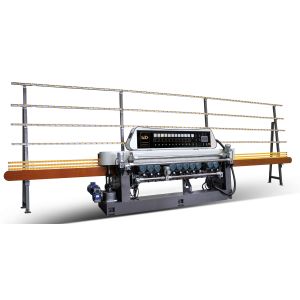

WX371 glass straight line beveling machine is used for grinding bevel and bottom edge of glass with different sizes and thickness. Rough grinding, fine grinding, polishing of bevel and grinding of bottom edge can be completed in one time. It is easy to adjust the feeding of motor in the all and the one and beveling angle while glass thickness is being changed. Same thickness of glass sheet can be process continually. The brightness of finished surface will be almost the same as glass itself. There is 1 bottom spindle, 7 rough & fine spindles and 3 polishing spindles.

1, All grinding and polishing motors are ABB motors.
2, The control system is Siemens PLC
3, All electric parts using Schneider brand (except Schneider haven’t produce).
4, The base and crossbeams are made by cast iron.

TECHNICAL SPECIFICATIONS
1. MAX.GLASS SIZE: 2500mm×2500mm
2. MIN.GLASS SIZE: 100mm×100mm
3. GLASS THICKNESS: 3mm-19mm
4. TRANSMISSINON SPEED: 0.5m/min-6m/min
5. MAX.HYPOTENUSE WIDTH 45mm
6. BEVEL ANGLE: 0-25°
7. POWER: 25.5KW
8. HEIGHT OF THE WORKTABLES: 750mm
9. WEIGHT: 4500kg
10. LAND OCCUPATION: 7000mm×1300mm×2500mm
